| SMAJ11A Name | TVS Diodes |
|---|---|
| SMAJ11A Package Type | DO-214AC |
| SMAJ11A Vrwm | 11.0V |
| SMAJ11A Vbr@It (Min.) | 12.20V |
| SMAJ11A Vbr@It (Max.) | 13.50V |
| Operating Voltage | 5.0V |
|---|---|
| Package | DFN1006 |
| Color | Black |
| Clamping Voltage | 20V |
| Rohs Compliant | Yes |
| Package | DO-214AC(SMA) |
|---|---|
| Maximum RMS Voltage | 14V |
| Maximum Average Forward Rectified Current | 3A |
| Peak Forward Surge Current | 100A |
| Maximum Repetitive Peak Reverse Voltage | 20V |
| Color | Black |
|---|---|
| Reverse Breakdown Voltage | 5.5V |
| Junction Capacitance | 75 PF |
| Package | SOD-323 |
| Rohs Compliant | Yes |
| Maximum RMS Voltage | 14V |
|---|---|
| Reverse Leakage Current At VRRM | 30μA |
| Typical Junction Capacitance Rating At VR=0V | 155pF |

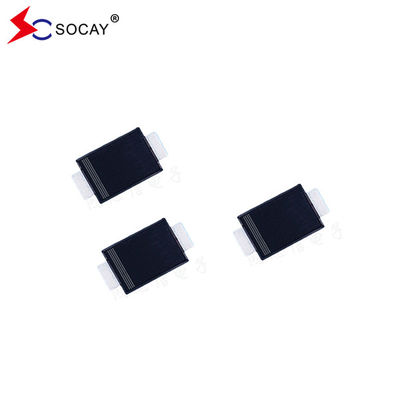

| Average Rectified Current | 1A |
| Maximum Forward Voltage At IF=1A | 0.55V |
| Tss Name | Thyristor Surge Suppressors (TSS) |
|---|---|
| Item | TSS DIODES |
| Description | Thyristor Surge Suppressors (TSS) |
| Maximum Leakage Current | Less Than 5μA |
| Package Size | DO-214AC/SMA |
| Maximum DC Blocking Voltage | 50V |
|---|---|
| Average Rectified Current At TA=75℃ | 2A |
| Maximum RMS Voltage | 35V |
| Peak Forward Surge Current | 50A |
| Storage Temperature Range | -65 To +125℃ |
| Package | DO-214AC(SMA) |
|---|---|
| Operating Junction Temperature Range | -55 To +150℃ |
| Maximum DC Blocking Voltage | 100V |
| Maximum Average Forward Current | 5A |
| Typical Junction Capacitance | 300pF |
| Maximum RMS Voltage | 140V |
|---|---|
| Peak Forward Surge Current | 150A |
| Operating Junction Temperature Range | -55 To +150℃ |
| Maximum DC Blocking Voltage | 520V |
| Maximum Repetitive Peak Reverse Voltage | 520V |
| Maximum RMS Voltage | 21V |
|---|---|
| Maximum Forward Voltage | 0.5V |
| Maximum Repetitive Peak Reverse Voltage | 30V |
| Package | DO-214AA(SMB) |
| Maximum DC Blocking Voltage | 30V |
