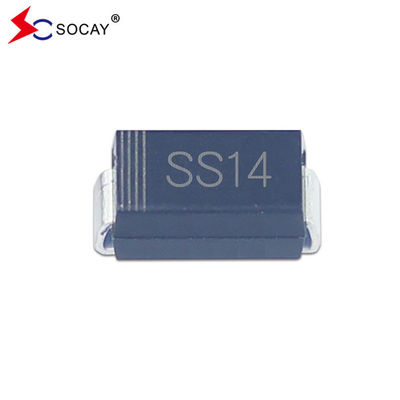

| Name | Schottky Barrier Diode |
|---|---|
| Package Type | DO-214AC(SMA) |
| Maximum Repetitive Peak Reverse Voltage | 40V |
| Maximum RMS Voltage | 28V |
| Maximum DC Blocking Voltage | 40V |
| Procuct Component Name | Schottky Diode |
|---|---|
| Package | DO-214AC(SMA) |
| Max. VRRM | 60V |
| Max. VRMS | 42V |
| Max. VDC | 60V |
| SBD Name | Schottky Barrier Diode |
|---|---|
| SBD Package | DO-214AC(SMA) |
| SBD Max. VRRM | 40V |
| Diode Max. VRMS | 28V |
| SBD Max. VDC | 40V |
| Resistance Under Load (mΩ) | 20Ω |
|---|---|
| Max. Permissible Working Current | 4A |
| Mounting | Throught Hole |
| Dissipation Factor Df | 21 MW/℃ |
| Standard | RoHS & Halogen Free (HF) Compliant |
| Component Name | PPTC Resettable Fuse |
|---|---|
| Package | Radial Lead |
| I Hold | 0.15A |
| I Trip | 0.30A |
| V Max | 400Vdc |
| Thermal Time Constant(s) | 12 |
|---|---|
| Enterprise Type | Co,Ltd |
| Part Number | MF52-202F3470FBCP |
| Foot Length | Customizable |
| Dissipation Factor(mW/℃ | 3 |

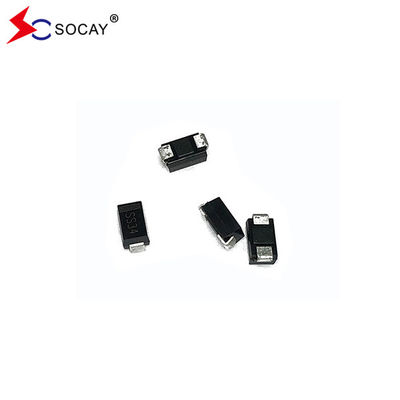

| Maximum Average Forward Rectified Current | 3A |
|---|---|
| Operating Junction Temperature Range | -65 To +125℃ |
| Typical Junction Capacitance | 500pF |
| Peak Forward Surge Current | 100A |
| Maximum Repetitive Peak Reverse Voltage | 40V |
