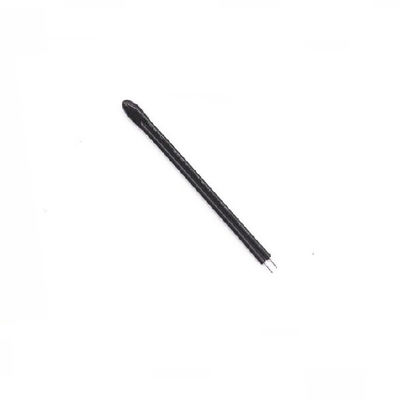

| Features | MF52 Pearl-Shape Temperature Measurement NTC Thermistor |
|---|---|
| Foot Length | Customizable |
| Standard | RoHS & Halogen Free (HF) Compliant |
| B Constant (25/50℃)(K) | 3550±1% |
| Operating Ambient Temperature(℃) | -40 ~ +125 |
| Product Name | Gas Discharge Tube |
|---|---|
| Size | 3.2*2.7*4.5mm |
| DC Spark-over Voltage @100V/μs | 90V±20% |
| Max. Spark-over Impulse Voltage @100V/μs | 600V |
| Max. Spark-over Impulse Voltage @1KV/μs | 700V |
| Product Name | Gas Discharge Tube |
|---|---|
| Size | 3.2*2.7*4.5mm |
| DC Spark-over Voltage @100V/μs | 600V±20% |
| Max. Spark-over Impulse Voltage @100V/μs | 1100V |
| Max. Spark-over Impulse Voltage @1KV/μs | 1200V |
| Description | Gas Discharge Tube |
|---|---|
| Package | 5*5*4.2mm |
| DC Spark-over Voltage @100V/μs | 90V±20% |
| Max. Spark-over Impulse Voltage @100V/μs | 500V |
| Max. Spark-over Impulse Voltage @1KV/μs | 650V |
| Product Name | Gas Discharge Tube |
|---|---|
| Size | φ5.5*6mm |
| DC Spark-over Voltage @100V/μs | 800V±20% |
| Max. Spark-over Impulse Voltage @100V/μs | 1200V |
| Max. Spark-over Impulse Voltage @1KV/μs | 1400V |
| Product Name | TVS Diodes |
|---|---|
| Package Type | DO-214AB/SMC |
| Vrwm | 58.0V |
| Vbr@It (Min.) | 64.40V |
| Vbr@It (Max.) | 71.20V |

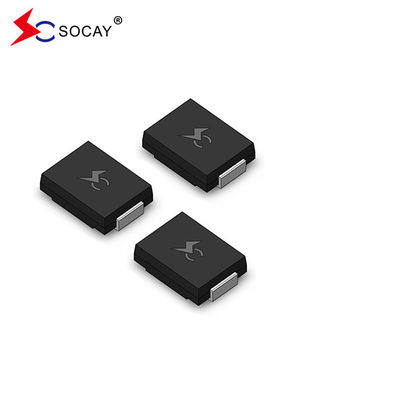

| Product Name | TVS Diodes |
|---|---|
| SMCJ90CA Package Type | DO-214AB/SMC |
| SMCJ90CA Vrwm | 90V |
| SMCJ90CA Vbr@It (Min.) | 100V |
| Vbr@It (Max.) | 111V |
| Product Name | NTC Thermistor |
|---|---|
| Length | Ф9mm |
| R25 | 5Ω |
| Imax | 3A |
| Resistance Under Load | 210mΩ |
| Product Name | Spark Gap Protectors (SPG) |
|---|---|
| Package Type | Axial Lead |
| VS | 140(98~182)V |
| IR/DC | 100M/50V |
| C | 1.0pF |

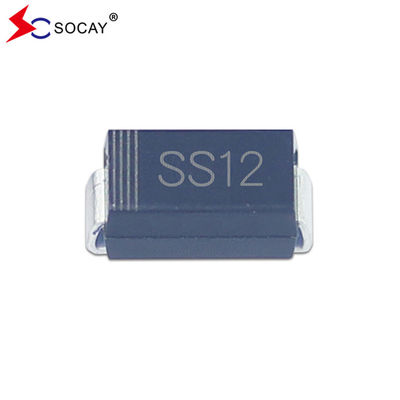

| Component Name | Schottky Barrier Diode |
|---|---|
| Package Type | DO-214AC(SMA) |
| VRRM | 20V |
| VRMS | 14V |
| VDC | 20V |
