| Item | TSS DIODES |
|---|---|
| Component | Thyristor Surge Suppressors |
| Description | Thyristor Surge Suppressors (TSS) |
| Tss Name | Thyristor Surge Suppressors (TSS) |
| Maximum Leakage Current | Less Than 5μA |
| Component Name | PPTC Resettable Fuse |
|---|---|
| Package | Surface Mount |
| I Hold | 0.10A |
| I Trip | 0.30A |
| V Max | 15.0Vdc |
| Weight | 1.0g |
|---|---|
| DC Sparkover Voltage | 4000V±20% |
| Product Name | Gas Discharge Tube |
| Application | Surge Protection |
| Dimensions | 6.5mm X 6.5mm X 5.5mm |

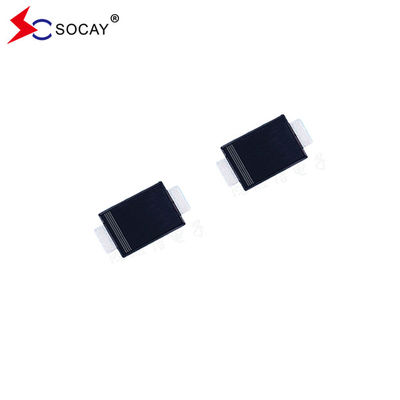

| Maximum Repetitive Peak Reverse Voltage | 30V |
|---|---|
| Package | SOD-123FL |
| Maximum RMS Voltage | 21V |
| Maximum DC Blocking Voltage | 30V |
| Peak Forward Surge Current | 50A |
| Component Name | PPTC Resettable Fuse |
|---|---|
| Package | Surface Mount |
| I Hold | 0.1A |
| I Trip | 0.3A |
| V Max | 24.0A |
| Maximum DC Blocking Voltage | 100V |
|---|---|
| Storage Temperature Range | -65 To +125℃ |
| Maximum Repetitive Peak Reverse Voltage | 100V |
| Average Rectified Current At TA=75℃ | 2A |
| Operating Junction Temperature Range | -65 To +125℃ |
| Lead Material | Tinned Copper |
|---|---|
| Certifications | UL, CUL, VDE, RoHS |
| Maximum Capacitance | <1.0pF |
| Voltage Rating | 400V |
| Weight | 0.8g |
| Features | Wide Operating Temperature Rang |
|---|---|
| Resistance At 25℃ ±20% | 10Ω |
| Capacitance | 470μF |
| Mounting | Throught Hole |
| Quality | High Quality |
| SMAJ11A Name | TVS Diodes |
|---|---|
| SMAJ11A Package Type | DO-214AC |
| SMAJ11A Vrwm | 11.0V |
| SMAJ11A Vbr@It (Min.) | 12.20V |
| SMAJ11A Vbr@It (Max.) | 13.50V |

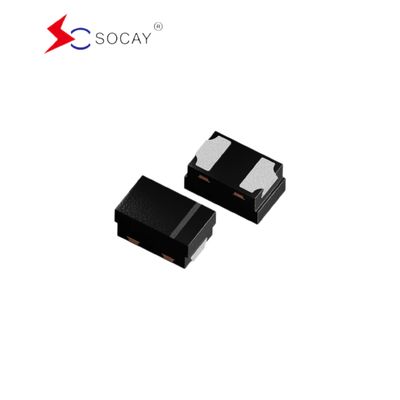

| Operating Voltage | 5.0V |
|---|---|
| Package | DFN1006 |
| Color | Black |
| Clamping Voltage | 20V |
| Rohs Compliant | Yes |
