| Maximum DC Blocking Voltage | 50V |
|---|---|
| Average Rectified Current At TA=75℃ | 2A |
| Maximum RMS Voltage | 35V |
| Peak Forward Surge Current | 50A |
| Storage Temperature Range | -65 To +125℃ |
| Description | Automotive Parts |
|---|---|
| Package Type | DO-218AB |
| Vr | 33V |
| Ir@Vr @25℃ | 5μA |
| Ir@Vr @175℃ | 150μA |
| Component Name | PPTC Resettable Fuse |
|---|---|
| Package | Radial Lead |
| I Hold | 0.5A |
| I Trip | 1.0A |
| V Max | 130Vdc |
| Component Name | PPTC Resettable Fuse |
|---|---|
| Package | Surface Mount |
| I Hold | 0.2A |
| I Trip | 0.5A |
| V Max | 24.0V |
| SMAJ64A Name | TVS Diodes |
|---|---|
| Package Type | DO-214AC/SMA |
| Vrwm | 64.0V |
| Vbr@It (Min.) | 71.10V |
| Vbr@It (Max.) | 78.60V |
| Key Words | TVS Diodes |
|---|---|
| Package Type | Axial Lead Terminals |
| Other Name | Semiconductor Components |
| Vac | 45V |
| Vdc | 66V |
| Product Name | Gas Discharge Tube |
|---|---|
| Size | 3.2*2.7*4.5mm |
| DC Spark-over Voltage @100V/μs | 350V±20% |
| Max. Spark-over Impulse Voltage @100V/μs | 800V |
| Max. Spark-over Impulse Voltage @1KV/μs | 900V |
| Maximum RMS Voltage | 21V |
|---|---|
| Maximum Forward Voltage | 0.5V |
| Maximum Repetitive Peak Reverse Voltage | 30V |
| Package | DO-214AA(SMB) |
| Maximum DC Blocking Voltage | 30V |
| Typical Junction Capacitance | 300pF |
|---|---|
| Package | DO-214AC(SMA) |
| Maximum Average Forward Rectified Current | 3A |
| Operating Junction Temperature Range | -65 To +150℃ |
| Peak Forward Surge Current | 100A |

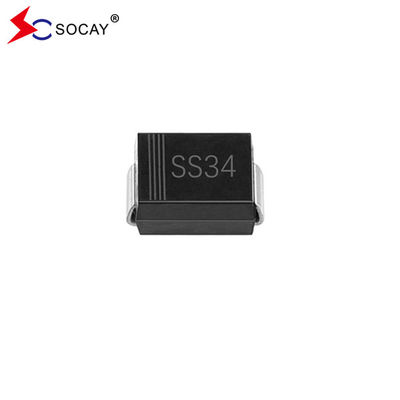

| Package | DO-214AA(SMB) |
|---|---|
| Maximum Forward Voltage | 0.5V |
| Maximum Repetitive Peak Reverse Voltage | 40V |
| Maximum Average Forward Current | 3A |
| Maximum RMS Voltage | 28V |
