| Operating Junction Temperature And Storage Temperature Range | -55 To +125℃ |
|---|---|
| Maximum Repetitive Peak Reverse Voltage | 150V |
| Average Rectified Current | 2A |
| Maximum Forward Voltage At IF=1A | 0.95V |
| Maximum DC Blocking Voltage | 150V |

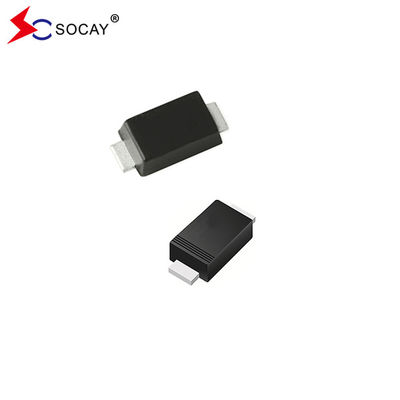

| SMF78CA Package Type | SOD-123 |
|---|---|
| SMF78CA Reverse Stand-OffVoltage VRWM | 78.0 |
| SMF78CA Breakdown Voltage VBR(V) @IT MIN | 86.70 |
| SMF78CA Breakdown Voltage VBR(V) @IT MAX | 95.80 |
| SMF78CA TestCurrentIT (mA) | 1 |
| Other Name | Passive Diodes |
|---|---|
| Footprint | R6/P600 |
| Vrwm | 45V |
| Vbr@It (Min.) | 50.3V |
| It | 5mA |
| Reverse Stand-Off Voltage | 78.0V |
|---|---|
| Breakdown Voltage @It (Min.) | 86.70V |
| Breakdown Voltage@It (Max.) | 95.80V |
| Test Current | 1mA |
| Maximum Clamping Voltage @Ipp | 126.0V |
| Minimum Insulation Resistance | 1GΩ |
|---|---|
| Operating Temperature | -40℃ ~ +90℃ |
| Application | Surge Protection For Electronics Equipments |
| DC Spark-over Voltage | 250V±20% |
| Certifications | RoHS |
| Maximum Capacitance | <1.0pF |
|---|---|
| Current Rating | 3kA |
| Dimensions | 4.2mm X 4.0mm X 5.0mm |
| Materials | Dull Tin-plated |
| Voltage Rating | 1000V±20% |
| Weight | 1.0g |
|---|---|
| DC Sparkover Voltage | 4000V±20% |
| Product Name | Gas Discharge Tube |
| Application | Surge Protection |
| Dimensions | 6.5mm X 6.5mm X 5.5mm |
| Product Name | TVS Diodes |
|---|---|
| Package Type | R6/P600 |
| Feature | Protection Device |
| Vrwm | 84V |
| Vbr@It (Min.) | 93.8V |
| Key Words | Lightning Arrester |
|---|---|
| Footprint | φ8*6mm |
| DC Spark-over Voltage @100V/μs | 90V±20% |
| Max. Spark-over Impulse Voltage @100V/μs | 500V |
| Max. Spark-over Impulse Voltage @1KV/μs | 600V |
| SMAJ11A Name | TVS Diodes |
|---|---|
| SMAJ11A Package Type | DO-214AC |
| SMAJ11A Vrwm | 11.0V |
| SMAJ11A Vbr@It (Min.) | 12.20V |
| SMAJ11A Vbr@It (Max.) | 13.50V |
