| Description | Gas Discharge Tube |
|---|---|
| Package | 5*5*4.2mm |
| DC Spark-over Voltage @100V/μs | 90V±20% |
| Max. Spark-over Impulse Voltage @100V/μs | 500V |
| Max. Spark-over Impulse Voltage @1KV/μs | 650V |
| SMAJ36A Name | TVS Diodes |
|---|---|
| SMAJ36A Package Type | DO-214AC |
| SMAJ36A Vrwm | 36.0V |
| SMAJ36A Vbr@It (Min.) | 40.00V |
| SMAJ36A Vbr@It (Max.) | 44.20V |
| Product Name | Metal Oxide Varistor |
|---|---|
| Size | Ф10mm |
| VAC | 385V |
| VDC | 505V |
| Varistor Voltage | 6200(558~682)V |

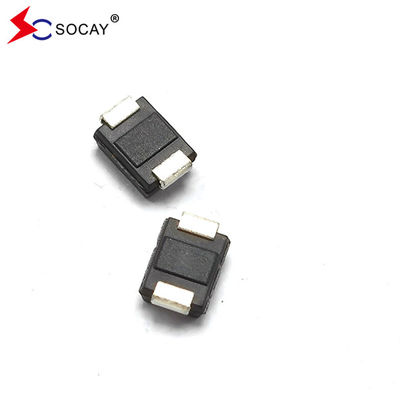

| Description | Thyristor Surge Suppressors (TSS) |
|---|---|
| Package Type | DO-214AA/SMB |
| VDRM (Min.) | 6V |
| IDRM | 5μA |
| Vs @100V/μS (Max.) | 25V |

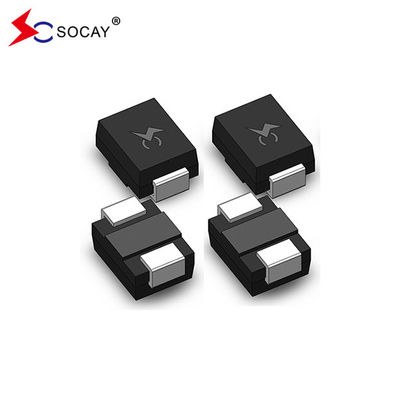

| Item | Thyristor Surge Suppressors (TSS) |
|---|---|
| Package Type | DO-214AA/SMB |
| VDRM (Min.) | 6V |
| IDRM | 5μA |
| Vs @100V/μS (Max.) | 25V |

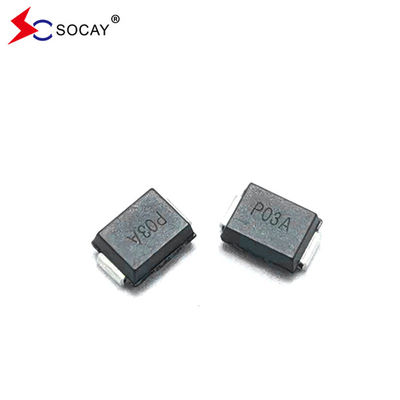

| Product Name | Thyristor Surge Suppressors (TSS) |
|---|---|
| Package Size | DO-214AA/SMB |
| VDRM (Min.) | 6V |
| IDRM | 5μA |
| Vs @100V/μS (Max.) | 25V |
| Product Name | Thyristor Surge Suppressors (TSS) |
|---|---|
| Foot Size | DO-214AA/SMB |
| VDRM (Min.) | 6V |
| IDRM | 5μA |
| Vs @100V/μS (Max.) | 25V |
| Key Words | Diodes |
|---|---|
| Package | DO-214AA/SMB |
| Application | Protection Circuit Board; |
| Mounting Type | Surface Amount |
| VDRM (Min.) | 58V |
| Vc (Typ.) (Ipp=1A) | 12.0V |
|---|---|
| Applications | Cellular Handsets & Accessories, Digital Visual Interface (DVI), RF Circuits, Display Port, USB Ports, MDDI Ports, PCI Express |
| Vrwm (Max.) | 3.3V |
| RoHS Compliant | Yes |
| Product Name | SE03N6L01GZ ESD Array Low Capacitance ESD Protection Operating Voltage 3.3V |
| Product Name | TVS Diodes |
|---|---|
| Package Size | DO-218AB |
| Vr | 20V |
| Ir@Vr @25℃ | 5μA |
| Ir@Vr @175℃ | 150μA |
