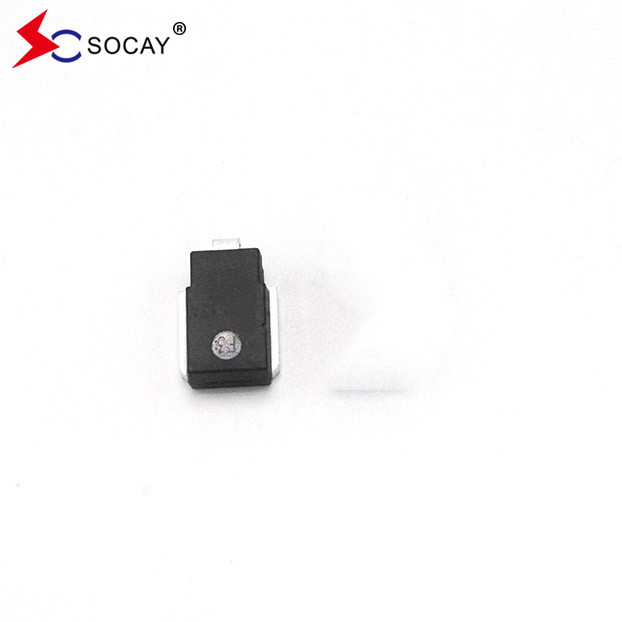

TVS Diodes SM8S18CAG, Peak Pulse Power Dissipation 6600W, Protect Sensitive Electronic Equipment
DATASHEET: SM8SXXG Series_v2309.1.pdf
Description:
| Part Number |
Working Peak Reverse Voltage VRWM (V) |
Breakdown Voltage VBR (V) |
Test Current IT (mA) |
Maximum Reverse Leakage IR @ VRWM (µA) |
Maximum IR @ VRWM TJ=175℃ (µA) |
Maximum Reverse Surge Current IPP (A) ① |
Maximum Clamping Voltage VC @ IPP (V) |
||
| Uni | Bi | Min. | Max. | ||||||
| SM8S18AG | SM8S18CAG | 18.0 | 20.0 | 22.1 | 5.0 | 10 | 150 | 226 | 29.2 |
|
Notes: 1. Surge current waveform is defined at 10/1000μS waveform. 2. For all types maximum VF = 1.8 V at IF = 100 A measured on 8.3 ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minute maximum. |
|||||||||
Features:
Optimized glass passivated chip.
TJ=175℃ capability suitable for high reliability and automotive requirement.
6600W peak pulse power capability with a 10/1000μs waveform, repetitive rate (duty cycle): 0.01 %.
Meet ISO7637-2 5a/5b and ISO 16750 load dump test (varied by test condition).
Meet AEC-Q101 qualified.
Low leakage current.
Low forward voltage drop.
Excellent clamping capability.
Very fast response time.
RoHS compliant.
Application:
Automotive Protection.
