| SMAJ70CA Name | TVS Diodes |
|---|---|
| SMAJ70CA Package Type | DO-214AC |
| SMAJ70CA Vrwm | 70.0V |
| SMAJ70CA Vbr@It (Min.) | 77.80V |
| SMAJ70CA Vbr@It (Max.) | 86.00V |
| Dimensions | 4.5mm X 3.2mm X 2.7mm |
|---|---|
| Certifications | RoHS,UL |
| Minimum Insulation Resistance | 1GΩ |
| Operating Temperature | -40℃ ~ +90℃ |
| Nominal Impulse Discharge Current | 1KA |
| Component Name | PPTC Resettable Fuse |
|---|---|
| Package | Radial Lead |
| I Hold | 0.03A |
| I Trip | 0.06A |
| V Max | 220Vdc |
| Package Size | DO-214AC/SMA |
|---|---|
| Component | Thyristor Surge Suppressors |
| Item | TSS DIODES |
| Maximum Leakage Current | Less Than 5μA |
| Tss Name | Thyristor Surge Suppressors (TSS) |
| Features | MF52 Pearl-Shape Temperature Measurement NTC Thermistor |
|---|---|
| Resistance(25℃)(kΩ) | 10±1% |
| Thermal Time Constant(s) | 12 |
| Enterprise Type | Co,Ltd |
| B Constant(25/85℃)(K) | -- |
| Product Name | Gas Discharge Tube |
|---|---|
| Maximum Capacitance | <1.5pF |
| Response Time | 25ns |
| Materials | Nickel-plated With Tinplated Wires |
| Application | Surge Protection For Electronics Circuits |
| Part Number | SN0402-X Series SN0402X103F3450FB |
|---|---|
| Thermal Time Constant(s) | 3 |
| Type | Chip NTC Thermistor |
| Material | Ceramic |
| Resistance(25℃)(kΩ) | 10±1% |

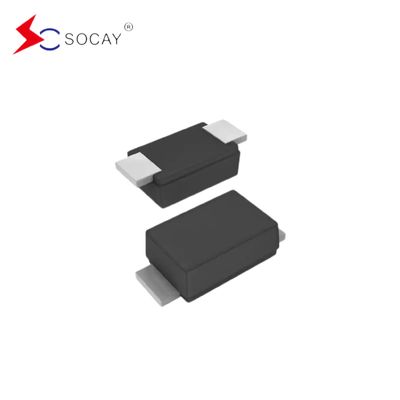

| Ifsm | 50A |
|---|---|
| Vdc | 40V |
| Operating Temperature | -50-+125°C |
| Maximum Average Forward Rectified Current | 2.0A |
| Storage Temperature Range | -50-+150°C |
| Description | Thyristor Surge Suppressors (TSS) |
|---|---|
| Product Name | Thyristor Surge Suppressors (TSS) |
| C0@1MHz, 2Vbias | 50pF Typ. |
| Abbreviation | TSS DIODES |
| VDRM | 170V Min. |
| Product Name | Thyristor Surge Suppressors (TSS) |
|---|---|
| Package Size | DO-214AC/SMA |
| Description | Thyristor Surge Suppressors (TSS) |
| Surge Ratings | 3/4KV(10/700μs) |
| C0@1MHz, 2Vbias | 120pF Typ. |
